INTELLIMAX & WINCON™ UPGRADE

Intellimax2WINCON

BRINGS THE FURNACE CONTROL SYSTEM UP TO DATE AND PREVENTS COSTLY DOWNTIME DUE TO FAILURE OF AN OBSOLETE SYSTEM.

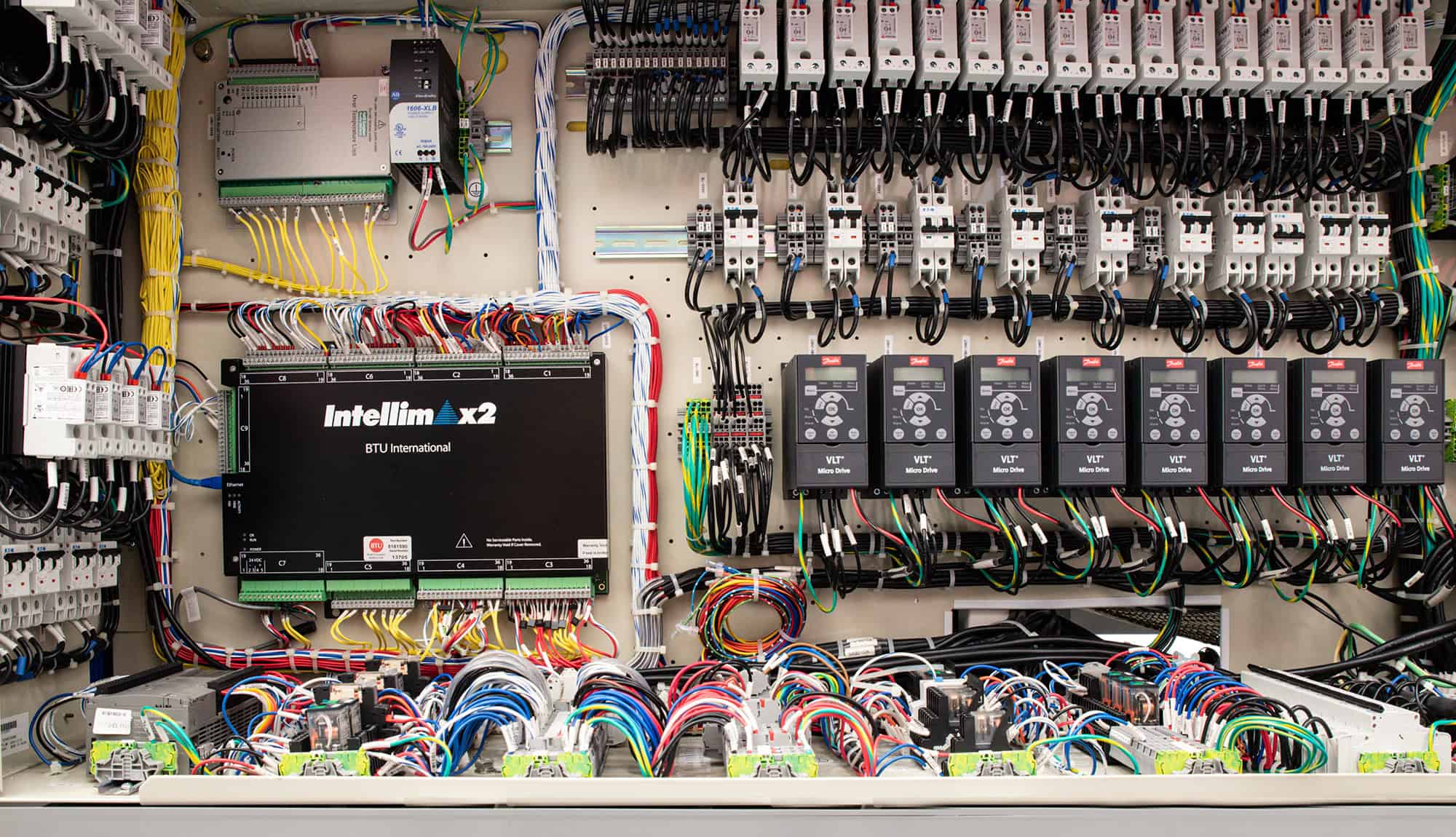

Intellimax2 presented by BTU International  WINCON™ is an advanced windows-based software system for controlling the operation of BTU thermal processing equipment. WINCON combines both the simplicity of a graphical user interface with powerful diagnostic and analytical tools. WINCON is used in conjunction with BTU’s proprietary INTELLIMAX™ control board on all BTU systems; including the Pyramax family of convection reflow ovens. The Intellimax2 features faster core components resulting in significant performance improvements. Intelligent on-board data protection, faster analog sampling speeds and fast software downloads minimizes downtime.

Many new features are included in the latest release of WINCON are: Heat Up Soak Timer, Process Pause, On the fly Oiler, and GEM Host enhancements.

Features of the upgraded Intellimax & WINCON software.

Upgrading your WINCON software not only allows users to take advantage of new features but avoids unplanned downtime when an older obsolete control board fails.

  • Compatible with all Intellimax Controllers including the new INTELLIMAX2
  • The new Heat Up Soak Timer feature allows equipment to soak for a small amount of time to help stabilize before running product.
  • Programmable Oiler – dramatically reducing weekly downtime.
  • WINCON 6.0 now supports a process pause feature; a non-recipe controlled output can be used to configure a simple button on the user-interface to pause/resume production.
  • Open Loop Pressure Control allows actual power output to always match the recipe setting.
  • OPC functions
  • And many more useful features

For more information on WINCON and to determine if your system can be upgraded please visit our WINCON web page.

For more information or a quote please contact BTU’s parts department at partsales@btu.com.
